Multiface Kit

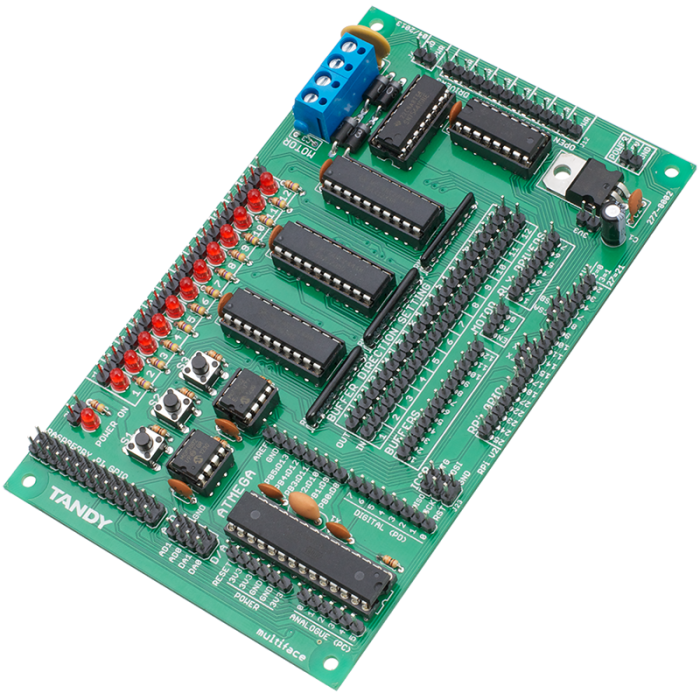

The Multiface is a multi-purpose IO (Input/Output) expansion interface for the Raspberry Pi. Bringing together a selection of interfacing components on to a single circuit board the Miltiface makes an ideal experimentation and prototyping system.

• 12x Buffered I/O with LED indicators
• 3x Push button switches
• 7x Open Collector darlington drivers
• Motor Controller
• 2-Channel digital to analogue convertor
• 2-Channel analogue to digital convertor
• ATMEGA 328 Microcontroller

Dimensions shown in mm.

Kit Contents

• Multiface Printed Circuit Board
• Electronic Components (to be soldered to PCB)
• 80mm Ribbon Cable
• 12x 100mm Female - Female Jumper Wires.
• 15x Shunt jumpers

 Assembly Manual
