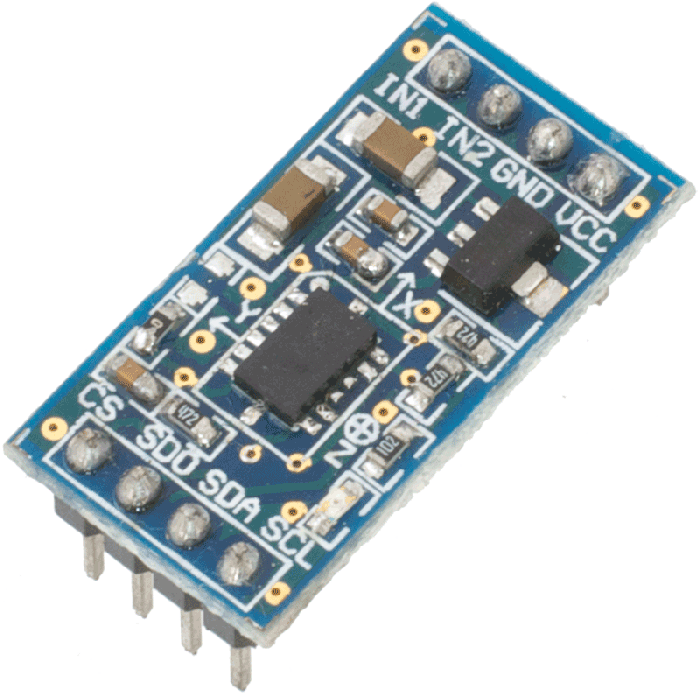

MMA7455 Accelerometer module

Three Axis Low-g Digital Output Accelerometer

The MMA7455L is a Digital Output (I2C/SPI), low power, low profile capacitive micromachined accelerometer featuring signal conditioning, a low pass filter, temperature compensation, self-test, configurable to detect 0g through interrupt pins (INT1 or INT2), and pulse detect for quick motion detection. 0g offset and sensitivity are factory set and require no external devices. The 0g offset can be customer calibrated using assigned 0g registers and g-Select which allows for command selection for 3 acceleration ranges (2g/4g/8g). The MMA7455L includes a Standby Mode that makes it ideal for handheld battery powered electronics.

Features

•Digital Output (I2C/SPI) •3mm x 5mm x 1mm LGA-14 Package •Low Current Consumption: 400 μA •Self-Test for Z-Axis •Low Voltage Operation: 2.4 V – 3.6 V •User Assigned Registers for Offset Calibration •Programmable Threshold Interrupt Output •Level Detection for Motion Recognition (Shock, Vibration, Freefall) •Pulse Detection for Single or Double Pulse Recognition •Sensitivity (64 LSB/g @ 2g and @ 8g in 10-Bit Mode) •Selectable Sensitivity (±2g, ±4g, ±8g) for 8-bit Mode •Robust Design, High Shocks Survivability (5,000g) •RoHS Compliant •Environmentally Preferred Product •Low Cost
